| General information |
|---|

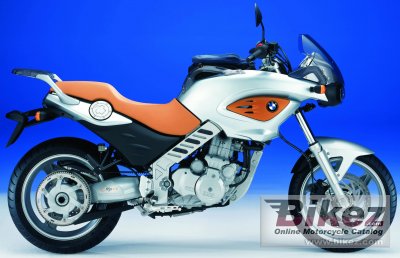

| Model: | BMW F 650 CS |
| Year: | 2005 |
| Category: | Naked bike |
| Rating: | 3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 652.0 ccm (39.79 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 49.6 HP (36.2 kW)) @ 6500 RPM |
| Torque: | 62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 5500 RPM |
| Top speed: | 178.0 km/h (110.6 mph) |
| Compression: | 11.5:1 |
| Bore x stroke: | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic intake pipe injection / BMW engine management, dual ignition |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system: | Dry sump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multiple-disc clutch in oil-bath, mechanically operated |
| Fuel consumption: | 3.00 litres/100 km (33.3 km/l or 78.41 mpg) |
| Greenhouse gases: | 69.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Bridging frame, steel section, with integrated oil tank and bolted-on rear frame |
| Rake (fork angle): | 27.9° |
| Trail: | 86 mm (3.4 inches) |
| Front suspension: | Telescopic fork, stanchion diameter 41 mm |
| Front wheel travel: | 35 mm (1.4 inches) |
| Rear suspension: | Die-cast aluminium single-sided swinging arm with rear wheel axle and eccentric adjustment, central spring strut action via lever system |
| Rear wheel travel: | 135 mm (5.3 inches) |
| Front tyre: | 110/70-ZR17 |
| Rear tyre: | 170/60-ZR17 |
| Front brakes: | Double disc |
| Diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 169.6 kg (373.9 pounds) |
| Weight incl. oil, gas, etc: | 187.0 kg (412.3 pounds) |
| Power/weight ratio: | 0.2925 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1158 mm (45.6 inches) |
| Overall length: | 2142 mm (84.3 inches) |
| Overall width: | 915 mm (36.0 inches) |
| Wheelbase: | 1493 mm (58.8 inches) |
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Comments: | ABS brakes. |
