BMW F 650 CS 20032003 BMW F 650 CS specifications, pictures, reviews and rating |

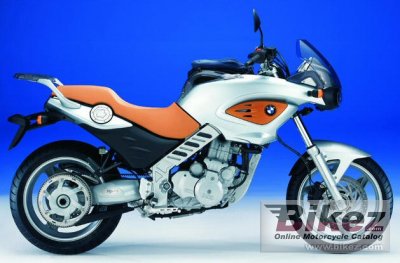

2003 BMW F 650 CS. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
| General information | |
|---|---|
| Model name | BMW F 650 CS |
| Year | 2003 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 652.0 ccm (39.79 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 50.0 HP (36.5 kW)) @ 6500 RPM |
| Torque | 59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 5000 RPM |
| Top speed | 175.0 km/h (108.7 mph) |
| Compression | 11.5:1 |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition integrated with fuel management |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Bridging, steel |
| Front suspension | Telescopic fork, 41 mm |
| Rear suspension | Steel swingarm with progressive shock linkage |
| Front tire | 110/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 193.0 kg (425.5 pounds) |
| Power/weight ratio | 0.2591 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall width | 650 mm (25.6 inches) |
| Wheelbase | 1479 mm (58.2 inches) |
| Fuel capacity | 17.30 litres (4.57 US gallons) |
| Reserve fuel capacity | 4.50 litres (1.19 US gallons) |
| Oil capacity | 2.50 litres (2.64 US quarts) |
| Other specifications | |
| Color options | Orange, Blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 15W-50 |
| Oil filter | K&N KN-151 |
| Brake fluid | DOT 4 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Battery | YB12AL-A |
| Spark plugs | NGK D8EA |
| Idle speed | 1350 +/- 100 RPM |
| Sprockets | 28/82 (front/rear) |
| Tire pressure front | 28 PSI (1.9 Bar or 190 kPa) |
| Tire pressure rear | 30 PSI (2.1 Bar or 210 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
