General information |
|
Model
|

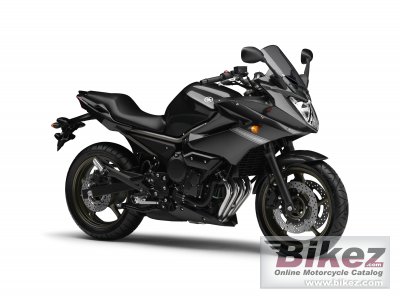

Yamaha XJ6 Diversion |
|
Year
|
2009 |
|
Category
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
600.0 ccm (36.61 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
76.4 HP (55.8 kW)) @ 10000 RPM |
|
Torque
|
59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 6100 RPM |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
65.5 x 44.5 mm (2.6 x 1.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel, diamond shaped |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm (monocross) |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
211.0 kg (465.2 pounds) |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1210 mm (47.6 inches) |
|
Overall length
|
2120 mm (83.5 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
17.30 litres (4.57 US gallons) |
|
Oil capacity
|
3.40 litres (3.59 US quarts) |
|
Other specifications |
|
Color options
|
Blue, graphite, red |
|
Starter
|
Electric |
