Yamaha's profilation of this bike |
The Mr. Olympia of power cruisers. A 1200cc, liquid-cooled V-4 beast that´s won more Best Musclebike awards than it knows what to do with. |
General information |
Motorcycle name
|

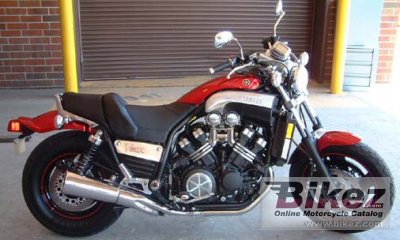

Yamaha V Max |
Year of manufacture
|
2005 |
Type
|
Custom / cruiser |
Price as new | US$ 10999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1198.0 ccm (73.10 cubic inches) |
Type of engine
|
V4, four-stroke |
Top speed
|
217.0 km/h (134.8 mph) |
Compression
|
10.5:1 |
Bore x stroke
|
76.0 x 66.0 mm (3.0 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Mikuni |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Fuel consumption
|
7.63 litres/100 km (13.1 km/l or 30.83 mpg) |
Greenhouse gases
|
177.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Front suspension
|
40mm telescopic fork w/air-assist |
Front wheel travel
|
140 mm (5.5 inches) |
Rear suspension
|
Dual shocks w/adjustable spring preload and rebound damping |
Rear wheel travel
|
100 mm (3.9 inches) |
Front tire
|
110/90-V18 |
Rear tire
|
150/90-V15 |
Front brakes
|
Double disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Dry weight
|
262.0 kg (577.6 pounds) |
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
Overall height
|
1161 mm (45.7 inches) |
Overall length
|
2301 mm (90.6 inches) |
Overall width
|
795 mm (31.3 inches) |
Wheelbase
|
1590 mm (62.6 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Matte Black |
Starter
|
Electric |
