| General moped information |
|---|

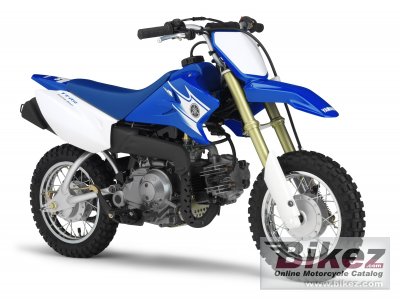

| Model: | Yamaha TT-R 50 E |
| Year: | 2007 |
| Category: | Enduro / offroad |
| Rating: | 74.6 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 1149. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.5:1 |
| Bore x stroke: | 36.0 x 48.6 mm (1.4 x 1.9 inches) |
| Fuel system: | Carburettor. 13mm Mikuni VM with electric heater |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 3-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Inverted telescopic fork |
| Front wheel travel: | 97 mm (3.8 inches) |
| Rear suspension: | Monocross, single coil-over shock absorber, 2.8´ |
| Front tyre: | 2/10-4 |
| Rear tyre: | 2/10-4 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 54.0 kg (119.0 pounds) |
| Seat height: | 556 mm (21.9 inches) If adjustable, lowest setting. |
| Overall height: | 775 mm (30.5 inches) |
| Overall length: | 1,306 mm (51.4 inches) |
| Overall width: | 594 mm (23.4 inches) |
| Ground clearance: | 135 mm (5.3 inches) |
| Wheelbase: | 925 mm (36.4 inches) |
| Fuel capacity: | 3.02 litres (0.80 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
