2003 Yamaha TT-R 225

Yamaha TT-R 225 2003


2003 Yamaha TT-R 225 specifications, pictures, reviews and rating

2003 Yamaha TT-R 225

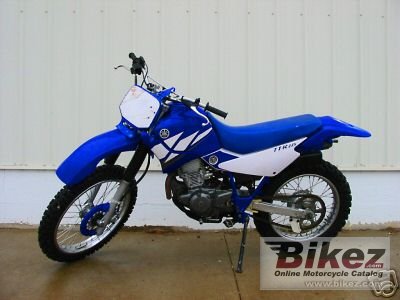

2003 Yamaha TT-R 225. ttr225. Submit more pictures.
General information
Motorcycle name Yamaha TT-R 225
Year model 2003
Type Enduro / offroad
Rating 4.0  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Engine size 223.0 ccm (13.61 cubic inches)
Type of engine Single cylinder, four-stroke
Torque 17.7 Nm (1.8 kgf-m or 13.1 ft.lbs) @ 6500 RPM
Compression 9.5:1
Bore x stroke 70.0 x 58.0 mm (2.8 x 2.3 inches)
Valves per cylinder 2
Fuel system Carburettor. Mikuni
Ignition CDI
Cooling system Air
Gearbox 6-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front suspension Telescopic fork
Rear suspension Single shock
Front tire 80/100-18
Rear tire 100/100-18
Front brakes Single disc
Diameter 220 mm (8.7 inches)
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Dry weight 118.0 kg (260.1 pounds)
Overall height 1150 mm (45.3 inches)
Overall length 2070 mm (81.5 inches)
Overall width 820 mm (32.3 inches)
Wheelbase 1350 mm (53.1 inches)
Fuel capacity 10.00 litres (2.64 US gallons)
Other specifications
