Yamaha FZS 1000 Fazer 20032003 Yamaha FZS 1000 Fazer specifications, pictures, reviews and rating |

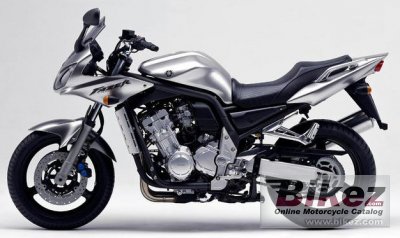

2003 Yamaha FZS 1000 Fazer. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
| General information | |
|---|---|
| Model name | Yamaha FZS 1000 Fazer |
| Model year | 2003 |
| Category | Naked bike |
| Rating | 4.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 998.0 ccm (60.90 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 143.1 HP (104.5 kW)) @ 10000 RPM |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 7500 RPM |
| Top speed | 260.0 km/h (161.6 mph) |
| Compression | 11.8:1 |
| Bore x stroke | 74.0 x 58.0 mm (2.9 x 2.3 inches) |
| Valves per cylinder | 5 |
| Fuel system | Carburettor. 4 x 37mm Mikuni CV Side draft |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple discs, cable operated |
| Fuel consumption | 5.46 litres/100 km (18.3 km/l or 43.08 mpg) |
| Greenhouse gases | 126.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, double cradle |
| Front suspension | Telescopic fork, 43mm tubes |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Link-type swingarm |
| Rear wheel travel | 135 mm (5.3 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 268 mm (10.6 inches) |
| Physical measures and capacities | |
| Dry weight | 208.0 kg (458.6 pounds) |
| Weight incl. oil, gas, etc | 230.0 kg (507.1 pounds) |
| Power/weight ratio | 0.6880 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall length | 2125 mm (83.7 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1397 mm (55.0 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Oil capacity | 3.00 litres (3.17 US quarts) |
| Other specifications | |
| Color options | Yellow, Blue, Silver |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | HiFloFiltro Chrome - HF303C |
| Brake fluid | DOT 4 |
| Coolant | 2.00 litres (0.53 US gallons) |
| Battery | YT14B-BS |
| Spark plugs | CR9E |
| Idle speed | 1100 +/- 50 RPM |
| Chain size | 530 |
| Chain links | 116 |
| Sprockets | 16/44 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
