General information |
|
Model name
|

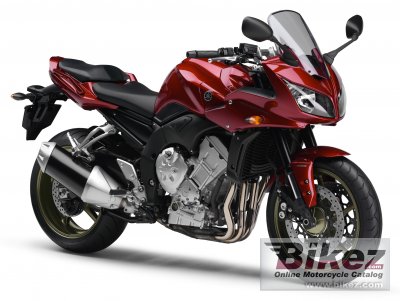

Yamaha FZ1 Fazer ABS |
|
Model year
|
2008 |
|
Category
|
Naked bike |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
147.9 HP (108.0 kW)) |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 10800 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium die-cast, diamond shaped |
|
Front suspension
|
Telescopic upside down forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
117 mm (4.6 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
201.0 kg (443.1 pounds) |
|
Power/weight ratio
|
0.7359 HP/kg |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1205 mm (47.4 inches) |
|
Overall length
|
2140 mm (84.3 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
