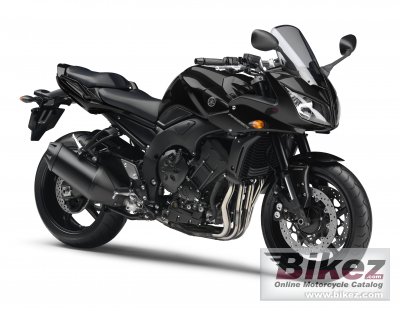

Yamaha FZ1 Fazer 20132013 Yamaha FZ1 Fazer specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| With its radical bodywork and compact dimensions, this stylish motorcycle has more street presence than anything in its class. It’s got the bodywork to defy the weather, storage for a weekend away, and the agility to cope with both town and country. It’s all you could ever need. |
| General information | |
|---|---|
| Model name | Yamaha FZ1 Fazer |
| Model year | 2013 |
| Category | Naked bike |
| Rating | 3.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 998.0 ccm (60.90 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 147.9 HP (108.0 kW)) @ 11000 RPM |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 8000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Injection. EFI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium die-cast, diamond shaped |
| Rake (fork angle) | 25.0° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Upside-down telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Power/weight ratio | 0.7470 HP/kg |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1205 mm (47.4 inches) |
| Overall length | 2140 mm (84.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | White, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Yamaha FZ1 Fazer discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Yamaha FZ1 Fazer and compare it to other bikes here.| Rating sample for this Yamaha bike | |
Reliability for the 2013 Yamaha FZ1 Fazer:  (83.7 out of 100)Click here for complete rating. |
|
