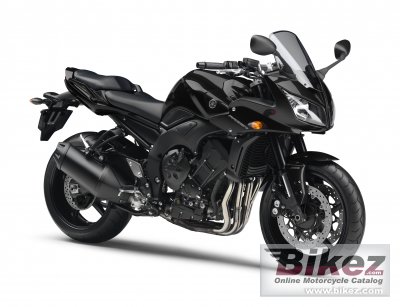

Yamaha FZ1 Fazer 20122012 Yamaha FZ1 Fazer specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| It’s easy to find yourself out for longer than planned on an FZ1 Fazer – the ride quality and performance have that effect. But there’s no need to worry, because an upper fairing keeps you comfy all day and protected from the weather and there’s plenty of room for luggage when you decide the ride’s going to last all weekend. |
| General information | |
|---|---|
| Motorcycle name | Yamaha FZ1 Fazer |
| Year of manufacture | 2012 |
| Type | Naked bike |
| Rating | 3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 998.0 ccm (60.90 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 147.9 HP (108.0 kW)) @ 11000 RPM |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 8000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant Mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium die-cast, diamond shaped |
| Rake (fork angle) | 25.0° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 198.0 kg (436.5 pounds) |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Power/weight ratio | 0.7470 HP/kg |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1205 mm (47.4 inches) |
| Overall length | 2140 mm (84.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
