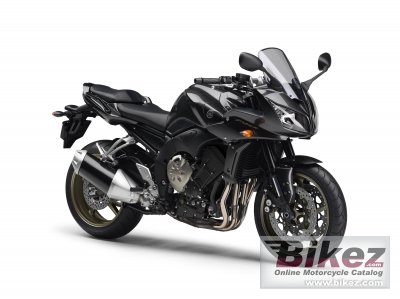

Yamaha FZ1 Fazer 20092009 Yamaha FZ1 Fazer specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Superb man-machine interaction is at the core of the Fazer’s R1-inspired supersport performance. Accelerating out of turns you feel it, because the R1-based engine is tuned for massive midrange. |
| General information | |
|---|---|
| Model | Yamaha FZ1 Fazer |
| Model year | 2009 |
| Category | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 998.0 ccm (60.90 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 147.9 HP (108.0 kW)) |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 10800 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI (digital) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium die-cast, diamond shaped |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1205 mm (47.4 inches) |
| Overall length | 2140 mm (84.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Graphite, blue, red |
| Starter | Electric |
