General information |
|
Model
|

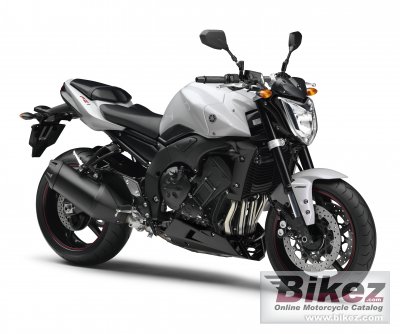

Yamaha FZ1 ABS |
|
Year of manufacture
|
2013 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
998.0 ccm (60.90 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
147.9 HP (108.0 kW)) @ 11000 RPM |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 8000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Valves per cylinder
|
5 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
O-ring chain. Constant mesh. |
|
Fuel consumption
|
6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
|
Greenhouse gases
|
155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium die-cast, Diamond Shaped |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Upside-down telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Linked monoshock with spring preload adjustment |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc. ABS. Floating disc. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS. Single-piston caliper. |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
221.0 kg (487.2 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1204 mm (47.4 inches) |
|
Overall length
|
2141 mm (84.3 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1461 mm (57.5 inches) |
|
Fuel capacity
|
18.17 litres (4.80 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
