Yamaha's profilation of this bike |
With its radical bodywork and compact dimensions, this stylish motorcycle has more street presence than anything in its class. It´s got the bodywork to defy the weather, storage for a weekend away, and the agility to cope with both town and country. It´s all you could ever need. |
General information |
Model name
|

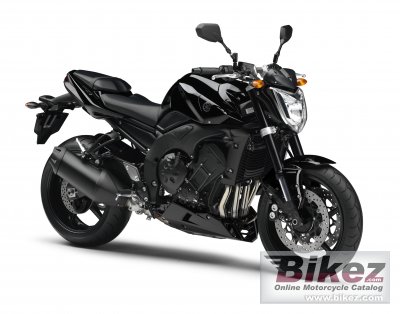

Yamaha FZ1 ABS |
Year model
|
2011 |
Type
|
Sport |
Rating
|
4.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
998.0 ccm (60.90 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Effect
|
147.5 HP (107.7 kW)) @ 11000 RPM |
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 8000 RPM |
Compression
|
11.5:1 |
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCI (digital) |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc coil spring |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium die-cast, Diamond Shaped |
Front suspension
|
Telescopic forks |
Rear suspension
|
Swingarm, (link suspension) |
Front tire
|
120/70-ZR17 |
Rear tire
|
190/50-ZR17 |
Front brakes
|
Double disc. Anti-lock braking |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
226.0 kg (498.2 pounds) |
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
Overall height
|
1205 mm (47.4 inches) |
Overall length
|
2140 mm (84.3 inches) |
Overall width
|
770 mm (30.3 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1460 mm (57.5 inches) |
Fuel capacity
|
18.00 litres (4.76 US gallons) |
Oil capacity
|
3.80 litres (4.02 US quarts) |
Other specifications |
Starter
|
Electric |
