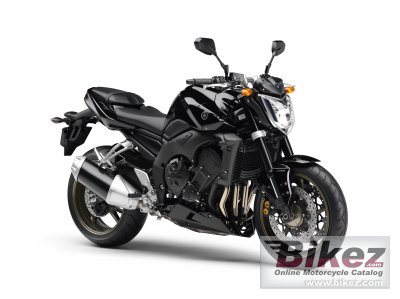

Yamaha FZ1 ABS 20092009 Yamaha FZ1 ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The FZ1 has got heart-pumping knockout performance and it’s got serious attitude on top of that, a lean and mean look that’s all about raw power. ABS option standard equipped with under cowling. |
| General information | |
|---|---|
| Model name | Yamaha FZ1 ABS |
| Year | 2009 |
| Category | Naked bike |
| Rating | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 998.0 ccm (60.90 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power | 147.9 HP (108.0 kW)) |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 10800 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI (digital) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium die-cast, diamond shaped |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 214.0 kg (471.8 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1060 mm (41.7 inches) |
| Overall length | 2140 mm (84.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Yellow, black, gray |
