General information |
|
Model name
|

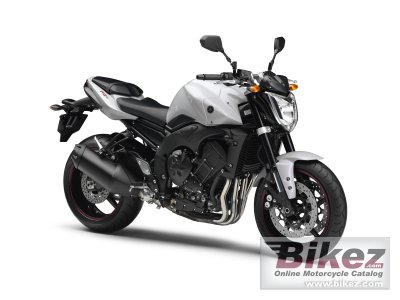

Yamaha FZ1 |
|
Year of manufacture
|
2010 |
|
Type
|
Sport |
| Price as new | US$ 10290. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
998.0 ccm (60.90 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Valves per cylinder
|
5 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Fuel consumption
|
6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
|
Greenhouse gases
|
155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
43mm fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
220.9 kg (487.0 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1204 mm (47.4 inches) |
|
Overall length
|
2141 mm (84.3 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1461 mm (57.5 inches) |
|
Fuel capacity
|
18.01 litres (4.76 US gallons) |
|
Other specifications |
|
Color options
|
Raven, Candy red |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
The ECU mapping has been revised to achieve improved throttle response in the low to mid-rpm range. |
