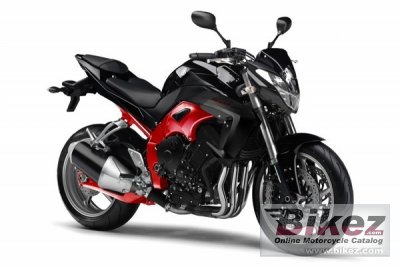

Yamaha FZ1-N 20122012 Yamaha FZ1-N specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| When someone says a bike is practical, what do most riders instantly think? Boring? Well, here’s a challenge for the cynics; take this practical motorcycle, spend a moment looking and feeling over its lines and angles, then take it for a blast… and see if it doesn’t get the adrenalin pumping. |
| General information | |
|---|---|
| Model | Yamaha FZ1-N |
| Year | 2012 |
| Category | Naked bike |
| Rating | 3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 998.0 ccm (60.90 cubic inches) |
| Engine type | In-line four, four-stroke |
| Engine details | Titanium intake valves |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Valves per cylinder | 5 |
| Fuel system | Injection. EFI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Driveline | O-ring chain |
| Fuel consumption | 6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
| Greenhouse gases | 155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium diamond die cast |
| Rake (fork angle) | 25.0° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Monocross |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. Monobloc four-piston calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 214.0 kg (471.8 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1204 mm (47.4 inches) |
| Overall length | 2141 mm (84.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1460 mm (57.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | White, black |
| Starter | Electric |
| Factory warranty | 1 Year (Limited Factory Warranty) |
