General information |
|
Model name
|

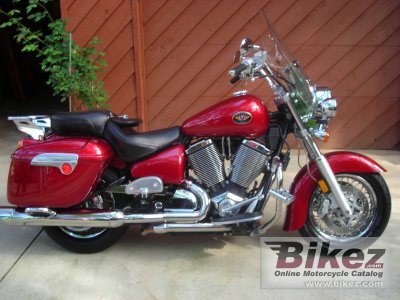

Victory Touring Cruiser |
|
Year of manufacture
|
2003 |
|
Type
|
Touring |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1507.0 ccm (91.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
97.0 x 102.0 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection |
|
Lubrication system
|
WET SUMP |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
WET MULTI-PLATE DIAPHRAGM SPRING |
|
Exhaust system
|
DUAL CROSSOVER |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
175 mm (6.9 inches) |
|
Front suspension
|
TELESCOPIC FORK |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
SINGLE,MONOTUBE GAS,PRELOAD ADJUSTABLE |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
MT90BI6-71 |
|
Rear tire
|
160/80-75 |
|
Front brakes
|
Double disc. FLOATING ROTAR 4 PISTON CALIPER |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. FLOATING ROTAR 2 PISTON |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
326.6 kg (720.0 pounds) |
|
Weight incl. oil, gas, etc
|
344.3 kg (759.0 pounds) |
|
Seat height
|
719 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1544 mm (60.8 inches) |
|
Overall length
|
2489 mm (98.0 inches) |
|
Overall width
|
1067 mm (42.0 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1664 mm (65.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Oil capacity
|
5.60 litres (5.92 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
