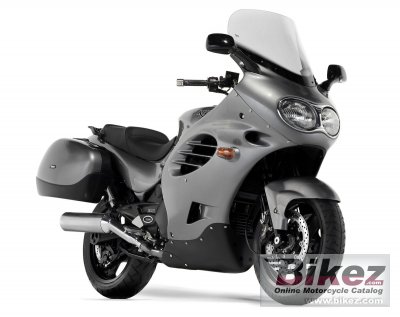

2003 Triumph Trophy 1200. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Triumph Trophy 1200 |
|
Model year
|
2003 |
|
Category
|
Touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1180.0 ccm (72.00 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
108.0 HP (78.8 kW)) @ 9000 RPM |
|
Torque
|
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 5000 RPM |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
76.0 x 65.0 mm (3.0 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
170/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Power/weight ratio
|
0.4596 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1430 mm (56.3 inches) |
|
Overall length
|
2152 mm (84.7 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Other specifications |
