| Triumph's profilation of this bike |
| The horizon is the Tiger´s destination, vast expanses its home. It thrives on challenge and lives for the journey and, no matter the task in hand, performs as only a bike with its depth can. |
|
General information |
|
Model name
|

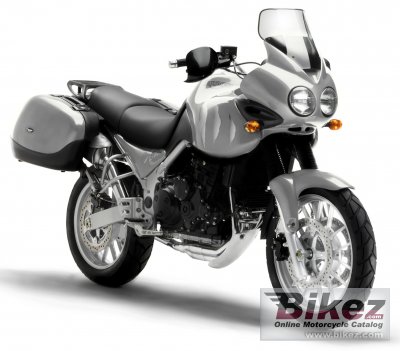

Triumph Tiger |
|
Year of manufacture
|
2006 |
|
Type
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
955.0 ccm (58.27 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Output
|
125.0 HP (91.2 kW)) @ 8900 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 5700 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
79.0 x 65.0 mm (3.1 x 2.6 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital - inductive type - via electronic engine management system |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel perimeter |
|
Rake (fork angle)
|
25.8° |
|
Trail
|
88 mm (3.5 inches) |
|
Front suspension
|
43mm forks |
|
Rear suspension
|
Monoshock with remotely adjustable preload and rebound damping |
|
Front tire
|
110/80-V19 |
|
Rear tire
|
150/70-V17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
285 mm (11.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
215.0 kg (474.0 pounds) |
|
Power/weight ratio
|
0.5814 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1390 mm (54.7 inches) |
|
Overall length
|
2250 mm (88.6 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
24.00 litres (6.34 US gallons) |
|
Other specifications |
|
Color options
|
Aluminum Silver. Caspian Blue. Jet Black |
|
Starter
|
Electric |
