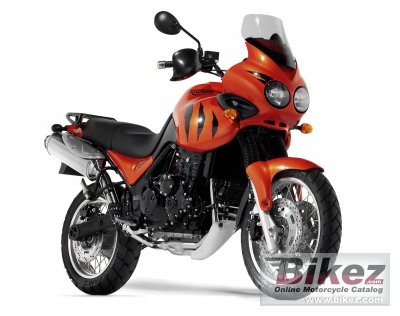

2003 Triumph Tiger. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
| General information |
|---|
| Model | Triumph Tiger |
| Year | 2003 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 955.0 ccm (58.27 cubic inches) |
| Engine type | In-line three, four-stroke |
| Power | 105.0 HP (76.6 kW)) @ 9500 RPM |
| Torque | 92.0 Nm (9.4 kgf-m or 67.9 ft.lbs) @ 4400 RPM |
| Compression | 11.7:1 |
| Bore x stroke | 79.0 x 65.0 mm (3.1 x 2.6 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Front tire | 110/80-H 19 |
| Rear tire | 150/70-H 17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 285 mm (11.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 215.0 kg (474.0 pounds) |
| Power/weight ratio | 0.4884 HP/kg |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Alternate seat height | 860 mm (33.9 inches) If adjustable, highest setting. |
| Overall height | 1370 mm (53.9 inches) |
| Overall length | 2250 mm (88.6 inches) |
| Overall width | 860 mm (33.9 inches) |
| Wheelbase | 1515 mm (59.6 inches) |
| Fuel capacity | 24.00 litres (6.34 US gallons) |
| Other specifications |
|---|
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Dirt-bike parts | Dirt-bike parts and gear available from Mega Motor Madness . Ships to most countries. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 Triumph Tiger discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Design and look for the 2003 Triumph Tiger:
 (82.9 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
