Triumph Bonneville America 20022002 Triumph Bonneville America specifications, pictures, reviews and rating |

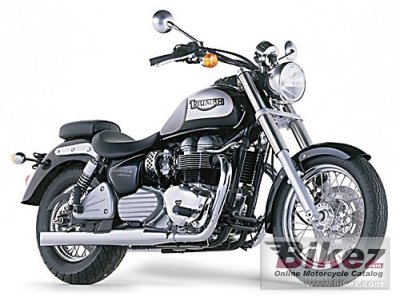

 2002 Triumph Bonneville America. Picture by Triumph. Published with permission.. Submit more pictures.
|
| General information | |
|---|---|
| Model: | Triumph Bonneville America |
| Year: | 2002 |
| Category: | Classic |
| Rating: | 3.9 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 790.0 ccm (48.21 cubic inches) |
| Engine type: | Twin, four-stroke |
| Power: | 61.0 HP (44.5 kW)) @ 7400 RPM |
| Torque: | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 86.0 x 68.0 mm (3.4 x 2.7 inches) |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Air |
| Gearbox: | 5-speed |
| Chassis, suspension, brakes and wheels | |
| Front brakes: | Single disc |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight: | 226.0 kg (498.2 pounds) |
| Power/weight ratio: | 0.2699 HP/kg |
| Seat height: | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Overall height: | 1184 mm (46.6 inches) |
| Overall length: | 2424 mm (95.4 inches) |
| Overall width: | 955 mm (37.6 inches) |
| Wheelbase: | 1655 mm (65.2 inches) |
| Fuel capacity: | 16.60 litres (4.39 gallons) |
| Other specifications | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 02 Triumph Bonneville America discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Triumph. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Triumph Bonneville America for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Triumph bike | |
Reliability for the 2002 Triumph Bonneville America:  (95.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
