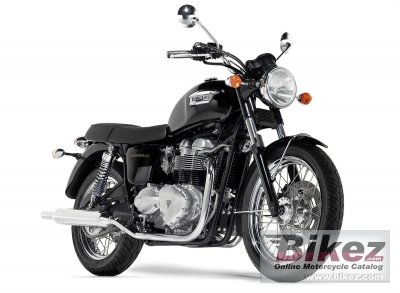

2003 Triumph Bonneville. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
| General information |
|---|
| Model: | Triumph Bonneville |
| Year: | 2003 |
| Category: | Classic |
| Rating: | 4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 790.0 ccm (48.21 cubic inches) |
| Engine type: | Twin, four-stroke |
| Power: | 62.0 HP (45.3 kW)) @ 7400 RPM |
| Torque: | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 86.0 x 68.0 mm (3.4 x 2.7 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 100/90-R 19 |
| Rear tyre: | 130/80-R 17 |
| Front brakes: | Single disc |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 255 mm (10.0 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 205.0 kg (451.9 pounds) |
| Power/weight ratio: | 0.3024 HP/kg |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height: | 1105 mm (43.5 inches) |
| Overall length: | 2250 mm (88.6 inches) |
| Overall width: | 860 mm (33.9 inches) |
| Wheelbase: | 1493 mm (58.8 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Other specifications |
|---|
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 03 Triumph Bonneville discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Touring capabilities for the 2003 Triumph Bonneville:
 (82.5 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
