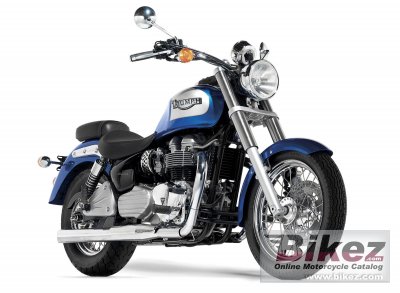

2003 Triumph America. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Model name
|
Triumph America |
|
Model year
|
2003 |
|
Category
|
Classic |
|
Rating
|
3.9 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
790.0 ccm (48.21 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
62.0 HP (45.3 kW)) @ 7400 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3500 RPM |
|
Top speed
|
179.0 km/h (111.2 mph) |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
86.0 x 68.0 mm (3.4 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital CDI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel, double cradle |
|
Rake (fork angle)
|
33.3° |
|
Front suspension
|
41 mm telescopic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Twin shocks, adjustable |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
110/80-R 18 |
|
Rear tire
|
170/80-R 15 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
285 mm (11.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
226.0 kg (498.2 pounds) |
|
Weight incl. oil, gas, etc
|
250.0 kg (551.2 pounds) |
|
Power/weight ratio
|
0.2743 HP/kg |
|
Seat height
|
720 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1184 mm (46.6 inches) |
|
Overall length
|
2424 mm (95.4 inches) |
|
Overall width
|
955 mm (37.6 inches) |
|
Wheelbase
|
1655 mm (65.2 inches) |
|
Fuel capacity
|
16.60 litres (4.39 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
