| Titan's profilation of this bike |
| Options abound with our smooth-riding, road-soaking Softail Chopper. You could stick with its standard 112ci S and S engine...or opt for our roaring 124ci S and S that´s loaded with performance upgrades. |
|
General information |
|
Model
|

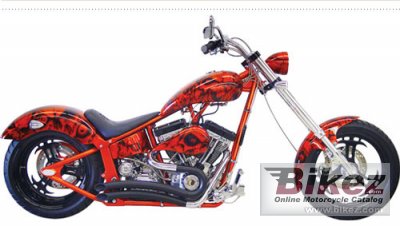

Titan Sidewinder Custom Softail Chopper |
|
Year
|
2008 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1750.0 ccm (106.79 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
112.0 HP (81.8 kW)) @ 5500 RPM |
|
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 4000 RPM |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. S and S serie G |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Diamond chain Primo clutch |
|
Fuel consumption
|
7.58 litres/100 km (13.2 km/l or 31.03 mpg) |
|
Greenhouse gases
|
175.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
Titan inverted 54mm forks with Titan billet triple trees. |
|
Rear suspension
|
Dual chromed agusta shocks |
|
Front tire
|
110/90-19 |
|
Rear tire
|
250/40-18 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 4-piston calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Power/weight ratio
|
0.3799 HP/kg |
|
Seat height
|
610 mm (24.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1740 mm (68.5 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Black, Red, White, Blue, Yellow |
|
Starter
|
Electric |
|
Comments
|
Several paint and graphics options available. |
