| Titan's profilation of this bike |
| Tough, cool, eye candy, awesome, the best. These are comments spoken by experienced riders. Standard features such as, S and S 112 C.I. engine, a polished six speed transmission, 260 mm left side drive and rear brake combo. |
|
General information |
|
Motorcycle name
|

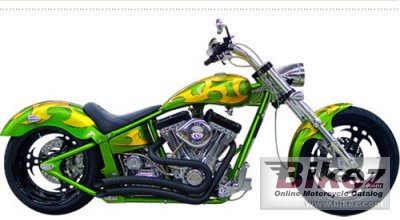

Titan Sidewinder Custom Pro Street Softail |
|
Model year
|
2008 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1750.0 ccm (106.79 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
112.0 HP (81.8 kW)) |
|
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) |
|
Compression
|
9.8:1 |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single fire programmable ignition |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Diamond chain Primo clutch |
|
Fuel consumption
|
7.58 litres/100 km (13.2 km/l or 31.03 mpg) |
|
Greenhouse gases
|
175.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
54mm inverted forks |
|
Rear suspension
|
Dual chrome adjustable shocks |
|
Front tire
|
110/90-19 |
|
Rear tire
|
250/40-18 |
|
Front brakes
|
Single disc. 4-piston calipers, polished stanless rotor |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 4-piston calipers, polished stanless rotor |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Power/weight ratio
|
0.3799 HP/kg |
|
Seat height
|
610 mm (24.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1740 mm (68.5 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Several paint and graphics options available. 124 C.I. S and S plus performance upgrade option. |
