General information |
Motorcycle name
|

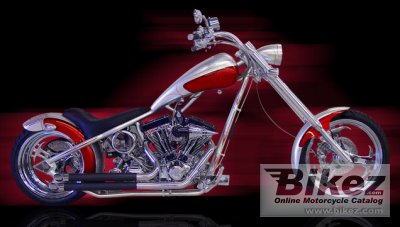

Titan Radical Rigid |
Year of manufacture
|
2011 |
Type
|
Custom / cruiser |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Engine size
|
1750.0 ccm (106.79 cubic inches) |
Type of engine
|
V2, four-stroke |
Output
|
112.0 HP (81.8 kW)) @ 5500 RPM |
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 4000 RPM |
Bore x stroke
|
101.6 x 113.0 mm (4.0 x 4.5 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. S and S serie G |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
Single fire programmable ignition |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Primo |
Driveline
|
Baker 6-speed |
Fuel consumption
|
8.40 litres/100 km (11.9 km/l or 28.00 mpg) |
Greenhouse gases
|
194.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system
|
Titan Custom Show Pipes |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
37.0° |
Front suspension
|
Inverted 54 mm forks with Titan billet tripple trees |
Rear suspension
|
Dual chromed agusta shocks |
Front tire
|
110/90-21 |
Rear tire
|
280/35-18 |
Front brakes
|
Single disc. 6-piston calipers. Polished rotor. |
Diameter
|
330 mm (13.0 inches) |
Rear brakes
|
Single disc. 4-piston calipers. Polished stainless rotor |
Diameter
|
292 mm (11.5 inches) |
Physical measures and capacities |
Dry weight
|
299.0 kg (659.2 pounds) |
Power/weight ratio
|
0.3746 HP/kg |
Seat height
|
559 mm (22.0 inches) If adjustable, lowest setting. |
Ground clearance
|
89 mm (3.5 inches) |
Wheelbase
|
2007 mm (79.0 inches) |
Fuel capacity
|
17.41 litres (4.60 US gallons) |
Reserve fuel capacity
|
4.16 litres (1.10 US gallons) |
Other specifications |
Color options
|
Black, Red, White, Yellow, Blue, Custom colors and graphics. |
Starter
|
Electric |
Factory warranty
|
2 years |
Comments
|
An optional 124 cinch. S and S engine is available. |
