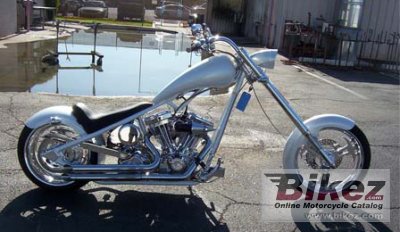

| Titan's profilation of this bike |
| Finally—a smooth riding rigid that´s long on looks and power. Speaking of long...the Radical Rigid is our longest bike at 104 inches. |
|
General information |
|
Motorcycle name
|
Titan Radical Rigid |
|
Year of manufacture
|
2008 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1750.0 ccm (106.79 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
112.0 HP (81.8 kW)) @ 5500 RPM |
|
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 4000 RPM |
|
Bore x stroke
|
101.6 x 113.0 mm (4.0 x 4.5 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. S and S serie G |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Titan performance clutch |
|
Fuel consumption
|
8.40 litres/100 km (11.9 km/l or 28.00 mpg) |
|
Greenhouse gases
|
194.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Titan Custom Show Pipes |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
37.0° |
|
Front suspension
|
Inverted 54 mm forks with Titan billet tripple trees |
|
Rear suspension
|
Dual chromed agusta shocks |
|
Front tire
|
110/90-21 |
|
Rear tire
|
280/35-18 |
|
Front brakes
|
Single disc. 6-piston calipers. Polished rotor. |
|
Diameter
|
330 mm (13.0 inches) |
|
Rear brakes
|
Single disc. 4-piston calipers. Polished stainless rotor |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
299.4 kg (660.0 pounds) |
|
Power/weight ratio
|
0.3741 HP/kg |
|
Seat height
|
559 mm (22.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
89 mm (3.5 inches) |
|
Wheelbase
|
2007 mm (79.0 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Reserve fuel capacity
|
4.16 litres (1.10 US gallons) |
|
Other specifications |
|
Color options
|
Black, Red, White, Yellow, Blue |
|
Starter
|
Electric |
|
Comments
|
A 124 cinch. engine upgrade is available. |
