General information |
Motorcycle name
|

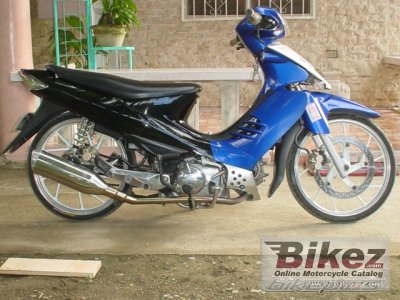

Suzuki Shogun R 110 |
Year model
|
2003 |
Type
|
Minibike, sport |
Rating
|
3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
109.0 ccm (6.65 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Top speed
|
120.0 km/h (74.6 mph) |
0-100 km/h (0-62 mph)
|
25.00 seconds |
Compression
|
9.3:1 |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Mikuni VM17SH |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
DC-CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Transmission type
|
Chain (final drive) |
Clutch
|
auto clutch |
Exhaust system
|
Single Steel Pipe |
Chassis, suspension, brakes and wheels |
Front tire
|
2.50-17 |
Rear tire
|
2.75-17 |
Front brakes
|
Single disc. 2-piston calipers |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
105.0 kg (231.5 pounds) |
Weight incl. oil, gas, etc
|
108.0 kg (238.1 pounds) |
Overall height
|
1200 mm (47.2 inches) |
Overall length
|
1930 mm (76.0 inches) |
Overall width
|
710 mm (28.0 inches) |
Ground clearance
|
143 mm (5.6 inches) |
Wheelbase
|
1225 mm (48.2 inches) |
Fuel capacity
|
4.50 litres (1.19 US gallons) |
Other specifications |
Color options
|
red
black |
Starter
|
Electric & kick |
