General information |
|
Model
|

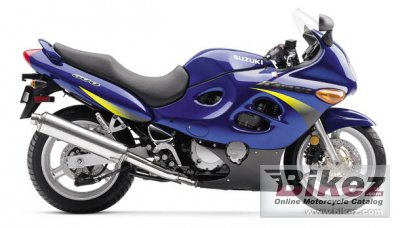

Suzuki GSX 600 F Katana |
|
Year of manufacture
|
2001 |
|
Type
|
Sport touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
600.0 ccm (36.61 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Engine details
|
Oil cooler with flow adjustment on right side of bike above idle adjustment |
|
Output
|
78.0 HP (56.9 kW)) @ 10500 RPM |
|
Torque
|
54.0 Nm (5.5 kgf-m or 39.8 ft.lbs) @ 9500 RPM |
|
Top speed
|
208.0 km/h (129.2 mph) |
|
Compression
|
11.4:1 |
|
Bore x stroke
|
62.6 x 48.7 mm (2.5 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 4 x Mikuni |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Transistorized |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc, manual |
|
Fuel consumption
|
5.70 litres/100 km (17.5 km/l or 41.27 mpg) |
|
Greenhouse gases
|
132.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.3° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Adjustable monoshock |
|
Rear wheel travel
|
142 mm (5.6 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
150/70-ZR17 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
290 mm (11.4 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
208.0 kg (458.6 pounds) |
|
Weight incl. oil, gas, etc
|
219.0 kg (482.8 pounds) |
|
Power/weight ratio
|
0.3750 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2136 mm (84.1 inches) |
|
Overall width
|
744 mm (29.3 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Reserve fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Blue, yellow |
|
Starter
|
Electric |
|
Electrical
|
12V 39.6 kC (10Ah)/10HR battery. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
ProFilter PF-138B |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YTX9-BS |
|
Spark plugs
|
NGK CR9EK, NGK CR9EIX |
|
Idle speed
|
1200 +/- 100 RPM |
|
Chain size
|
530 |
|
Chain links
|
118 |
|
Sprockets
|
15/47 (front/rear) |
|
Tire pressure front
|
33 PSI (2.3 Bar or 225 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
