Suzuki DR-Z 400 S 20032003 Suzuki DR-Z 400 S specifications, pictures, reviews and rating |

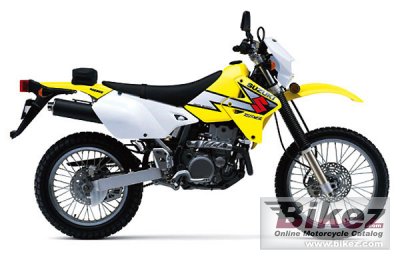

2003 Suzuki DR-Z 400 S. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
| General information | |
|---|---|
| Motorcycle name | Suzuki DR-Z 400 S |
| Model year | 2003 |
| Category | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 398.0 ccm (24.29 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Torque | 39.0 Nm (4.0 kgf-m or 28.8 ft.lbs) |
| Top speed | 152.0 km/h (94.4 mph) |
| Compression | 11.3:1 |
| Bore x stroke | 90.0 x 62.6 mm (3.5 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BSR36 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital CDI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple discs, cable operated |
| Fuel consumption | 4.50 litres/100 km (22.2 km/l or 52.27 mpg) |
| Greenhouse gases | 104.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic, 49 mm, oil-damped, 11-way compression damping, adjustable spring preload |
| Front wheel travel | 290 mm (11.4 inches) |
| Rear suspension | Link-type, fully adjustable spring preload, 26-way compression damping |
| Rear wheel travel | 295 mm (11.6 inches) |
| Front tire | 80/100-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 250 mm (9.8 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 132.0 kg (291.0 pounds) |
| Weight incl. oil, gas, etc | 144.0 kg (317.5 pounds) |
| Seat height | 935 mm (36.8 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2310 mm (90.9 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Oil capacity | 1.80 litres (1.9 US quarts) |
| Other specifications | |
| Color options | Yellow |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Spark plugs | NGK CR8E, NGK CR8EIX |
| Idle speed | 1.500 +/- 100 RPM |
| Chain size | 520 |
| Chain links | 112 |
| Sprockets | 15/44 (front/rear) |
| Tire pressure front | 18 PSI (1.3 Bar or 125 kPa) |
| Tire pressure rear | 22 PSI (1.5 Bar or 150 kPa) |
| Fork tube size | 49 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
