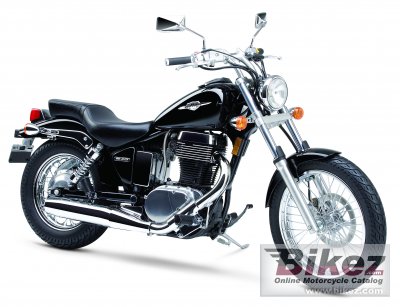

Suzuki Boulevard S40 20062006 Suzuki Boulevard S40 specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| There´s a good reason so many road bikes in the ´50s and ´60s were big single-cylinder machines: they´re incredibly fun to ride! The Boulevard S40 adds a shot of advanced Suzuki technology to this timeless design to create a bike that combines exciting performance with rock-solid reliability. |
| General information | |
|---|---|
| Model name | Suzuki Boulevard S40 |
| Model year | 2006 |
| Category | Custom / cruiser |
| Price as new | US$ 4399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 655.5 ccm (40.00 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Torque | 50.0 Nm (5.1 kgf-m or 36.9 ft.lbs) |
| Compression | 8.5:1 |
| Bore x stroke | 94.0 x 94.0 mm (3.7 x 3.7 inches) |
| Fuel system | Carburettor. Mikuni |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Transistorized |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiple discs, cable operated |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 35.0° |
| Trail | 147 mm (5.8 inches) |
| Front suspension | Telescopic, coil spring, oil damped |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Twin shock, 5-way adjustable spring preload |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 100/90-H19 |
| Rear tire | 140/80-H15 |
| Front brakes | Single disc |
| Diameter | 265 mm (10.4 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 160.0 kg (352.7 pounds) |
| Weight incl. oil, gas, etc | 172.0 kg (379.2 pounds) |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 720 mm (28.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 10.50 litres (2.77 US gallons) |
| Oil capacity | 2.40 litres (2.54 US quarts) |
| Other specifications | |
| Color options | Black, Red, Silver |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | HiFloFiltro HF137 |
| Brake fluid | DOT 4 |
| Battery | YB14L-B2 |
| Spark plugs | NGK DPR8EA-9, NGK DPR8EIX-9 |
| Idle speed | 1100 +/- 100 RPM |
| Tire pressure front | 29 PSI (2 Bar or 200 kPa) |
| Tire pressure rear | 33 PSI (2.3 Bar or 225 kPa) |
| Fork tube size | 38 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
