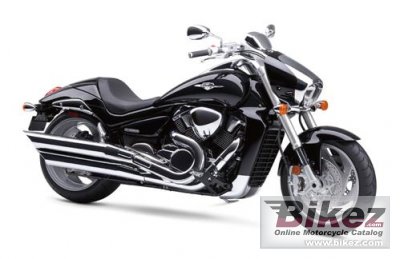

Suzuki Boulevard M109R 20092009 Suzuki Boulevard M109R specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| A streamlined headlight cover carrying a unique trapezoidal shaped multi reflector H4 halogen headlight and a maintenance free LED tail light built into the tailsection. |
| General information | |
|---|---|
| Model | Suzuki Boulevard M109R |
| Year of manufacture | 2009 |
| Type | Custom / cruiser |
| Price as new | US$ 13099. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1783.0 ccm (108.80 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Fuel system | Injection. Dual Throttle Valve system (SDTV) with 56mm throttle bodies |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (Transistorized) |
| Lubrication system | Semi-Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Exhaust system | 2-into-1-into-2 stainless steel chromed exhaust system |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile double cradle steel |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Rear suspension | Link type, coil spring, oil damped |
| Front tire | 130/70-R18 |
| Rear tire | 240/40-R18 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Overall height | 1185 mm (46.7 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1710 mm (67.3 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Black, Red, Silver |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Suzuki Boulevard M109R discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Suzuki. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Suzuki Boulevard M109R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Suzuki bike | |
Racing track capabilities for the 2009 Suzuki Boulevard M109R:  (69.1 out of 100)Click here for complete rating. |
|
