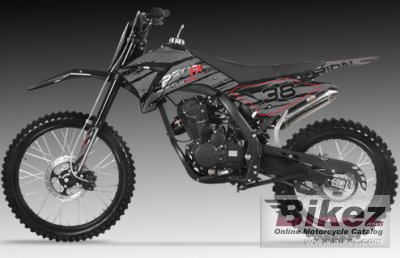

Orion AGB-38 20092009 Orion AGB-38 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Orion AGB-38 |
| Model year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 250.0 ccm (15.26 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 67.0 x 65.0 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Chassis, suspension, brakes and wheels | |
| Frame type | High Strength Steel |
| Front suspension | Non-Adjustable Inverted Hydraulic Forks |
| Rear suspension | Non-Adjustable rear shock |
| Front tire | 80/100-21 |
| Rear tire | 110/100-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 108.0 kg (238.1 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall height | 1235 mm (48.6 inches) |
| Overall length | 2300 mm (90.6 inches) |
| Overall width | 880 mm (34.6 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Color options | Apollo Black, Red, Blue, Green, Yellow, Pink, Carbon Look, Orange, White |
| Starter | Electric |
| Comments | Made in China. Available with both air and water cooling. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Orion AGB-38 discussion group or the general Orion discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Orion AGB-38 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Orion bike | |
Reliability for the 2009 Orion AGB-38:  (68.4 out of 100)Click here for complete rating. |
|
