General moped information |
|
Motorcycle name
|

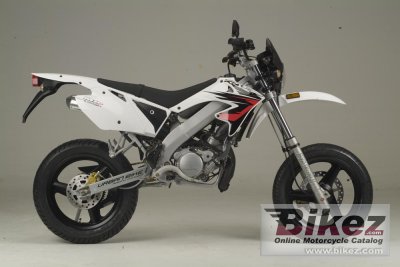

Motorhispania RYZ Supermotard |
|
Year
|
2010 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell Ortho PHBN 12 HS |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multidisc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Deltabox |
|
Front suspension
|
Paioli, 36mm |
|
Rear suspension
|
Monoshock absorber |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Double piston |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
97.0 kg (213.8 pounds) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
845 mm (33.3 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
MH is a Spanish brand. Minarelli AM6 engine. |
