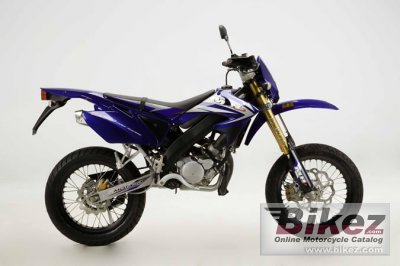

2009 Motorhispania RYZ Pro Racing 49 Supermotard. Picture credits - Motorhispania.
Submit more pictures.
|
|
| Motorhispania's profilation of this bike |
| The Ryz elevated to the maximum power. |
|
General moped information |
|
Model name
|
Motorhispania RYZ Pro Racing 49 Supermotard |
|
Model year
|
2009 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Fuel system
|
Carburettor. Dell Ortho PHBN 12 HS |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double steel beam |
|
Front suspension
|
Inverted hydraulic fork 38 mm advance axle |
|
Rear suspension
|
Olle mono shock absorber |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/80-18 |
|
Front brakes
|
Single disc. Galfer Wave |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Galfer Wave |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Overall height
|
1420 mm (55.9 inches) |
|
Overall length
|
2010 mm (79.1 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Black, blue |
|
Starter
|
Kick |
|
Comments
|
MH bikes are made in Spain. Minarelli AM 6 engine. |
