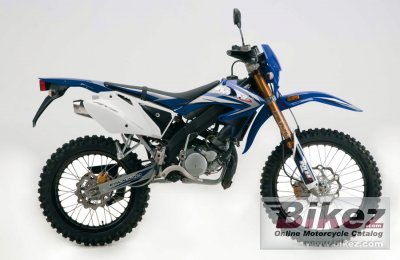

2012 Motorhispania RYZ 49 Pro Racing Off Road. Picture credits - Motorhispania.
Submit more pictures.
|
|
| Motorhispania's profilation of this bike |
| The Ryz elevated to the maximum power. |
| General moped information |
|---|
| Model | Motorhispania RYZ 49 Pro Racing Off Road |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Minarelli AM 6 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell Orto PHBN 16 |
| Ignition | CDI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Multiidsk in oil coating |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Double steel beam |
| Front suspension | Inverted hydraulic fork 38 mm advance axle |
| Rear suspension | Olle mono shock absorber, seprate bottle |
| Front tire | 90/90-21 |
| Rear tire | 120/80-18 |
| Front brakes | Single disc. Galfer Wave |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Galfer Wave |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 95.0 kg (209.4 pounds) |
| Seat height | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall height | 1420 mm (55.9 inches) |
| Overall length | 2010 mm (79.1 inches) |
| Overall width | 845 mm (33.3 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 7.80 litres (2.06 US gallons) |
| Other specifications |
|---|
| Color options | Blue, green, orange, black |
| Starter | Kick |
| Comments | Motorhispania, also called MH Motorcycles, is a Spanish brand. |
