| General information |
|---|

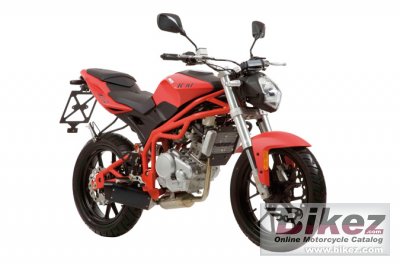

| Model: | Motorhispania KN1 125 |
| Year: | 2012 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 125.0 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Yamha-Minarelli engine |
| Power: | 15.0 HP (10.9 kW)) |
| Compression: | 10.0:1 |
| Bore x stroke: | 58.6 x 52.0 mm (2.3 x 2.0 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. CVEK C2T7 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multidisk |
| Emission details: | Euro III |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Multitubular |
| Front suspension: | Paioli upside down fork, 41 mm |
| Rear suspension: | Ollé mono shock absorber |
| Rear wheel travel: | 130 mm (5.1 inches) |
| Front tyre: | 100/80-17 |
| Rear tyre: | 130/70-17 |
| Front brakes: | Single disc. Galfer Wave Air |
| Diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Galfer Wave Air |
| Diameter: | 220 mm (8.7 inches) |
| Wheels: | Black rims, 10 spoke |
| Physical measures and capacities |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) |
| Power/weight ratio: | 0.1250 HP/kg |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length: | 1920 mm (75.6 inches) |
| Wheelbase: | 1310 mm (51.6 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Other specifications |
|---|
| Color options: | Black, red |
| Starter: | Electric & kick |
| Instruments: | Analog/digital |
| Factory warranty: | 2 years unlimited mileage |
| Comments: | Motorhispania, also called MH Motorcycles, is a Spanish brand. |
