Motorhispania KN1 125 20102010 Motorhispania KN1 125 specifications, pictures, reviews and rating |

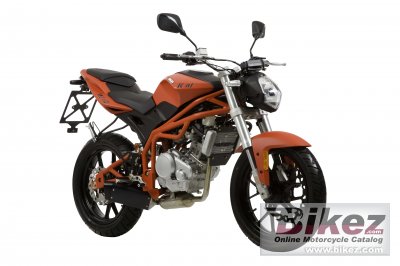

 2010 Motorhispania KN1 125. Picture credits - Motorhispania. Submit more pictures.
|
| General information | |
|---|---|
| Model | Motorhispania KN1 125 |
| Model year | 2010 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 15.0 HP (10.9 kW)) @ 9000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 58.6 x 52.0 mm (2.3 x 2.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. CVEK C2T7 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Multitubular |
| Front suspension | Paioli upside down fork, 41 mm |
| Rear suspension | Ollé mono shock absorber |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 100/80-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc. Galfer Wave Air |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Galfer Wave Air |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 120.0 kg (264.6 pounds) |
| Power/weight ratio | 0.1250 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length | 1920 mm (75.6 inches) |
| Overall width | 845 mm (33.3 inches) |
| Wheelbase | 1310 mm (51.6 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Black, red |
| Starter | Electric & kick |
| Comments | MH bikes are made in Spain. Minarelli-Yamaha 125cc engine. Digital dashboard. |
