| General information |
|---|

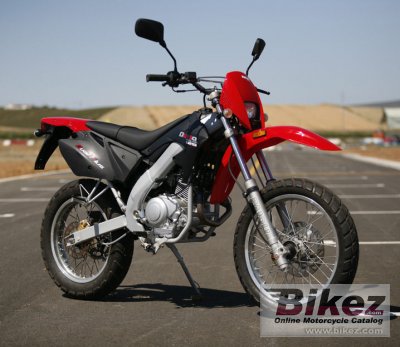

| Model: | Motorhispania Duna Dual Plus Trail |
| Year: | 2010 |
| Category: | Trial |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 125.0 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 12.0 HP (8.8 kW)) @ 8600 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Mikuni VM 20 |
| Ignition: | CDI |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Clutch: | Light alloy multiple disk wet |
| Exhaust system: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Paioli advanced axle |
| Rear suspension: | Paioli monoshock |
| Front tyre: | 100/90-19 |
| Rear tyre: | 120/90-19 |
| Front brakes: | Single disc. Tecme |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Tecme |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 105.0 kg (231.5 pounds) |
| Weight incl. oil, gas, etc: | 113.5 kg (250.2 pounds) |
| Power/weight ratio: | 0.1143 HP/kg |
| Seat height: | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall length: | 2010 mm (79.1 inches) |
| Overall width: | 845 mm (33.3 inches) |
| Fuel capacity: | 7.80 litres (2.06 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric & kick |
| Comments: | MH is a Spanish brand. |
