| General information |
|---|

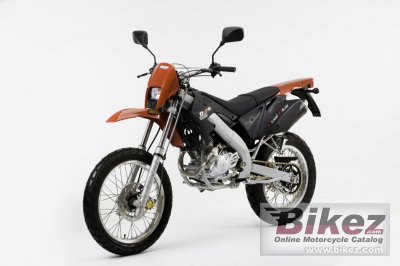

| Model: | Motorhispania Duna 125 Trail |
| Year: | 2009 |
| Category: | Trial |
| Rating: | 2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 125.0 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 12.0 HP (8.8 kW)) @ 8600 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Mikuni VM 20 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiplate |
| Exhaust system: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Paioli advanced axle |
| Rear suspension: | Paioli monoshock |
| Front tyre: | 100/90-19 |
| Rear tyre: | 120/90-19 |
| Front brakes: | Single disc. Tecme |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Tecme |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 105.0 kg (231.5 pounds) |
| Power/weight ratio: | 0.1143 HP/kg |
| Seat height: | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall length: | 2010 mm (79.1 inches) |
| Overall width: | 845 mm (33.3 inches) |
| Wheelbase: | 1350 mm (53.1 inches) |
| Fuel capacity: | 7.80 litres (2.06 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric & kick |
| Comments: | MH bikes are made in Spain. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 09 Motorhispania Duna 125 Trail discussion group or the general Motorhispania discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Motorhispania bike
|
Reliability for the 2009 Motorhispania Duna 125 Trail:
 (45.5 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
