General information |
|
Model
|

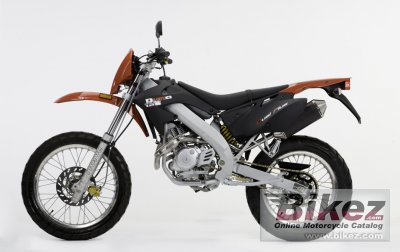

Motorhispania Duna 125 Supermotard |
|
Year model
|
2009 |
|
Type
|
Super motard |
|
Rating
|
2.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
12.0 HP (8.8 kW)) @ 8600 RPM |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni VM 20 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Deltabox double steel beam |
|
Front suspension
|
Upside down fork |
|
Rear suspension
|
Paioli monoshock |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Galfer Wave |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc. Galfer Wave |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
105.0 kg (231.5 pounds) |
|
Power/weight ratio
|
0.1143 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric & kick |
|
Comments
|
MH bikes are made in Spain. |
