General information |
|
Model
|

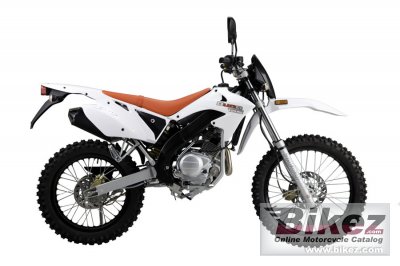

Motorhispania Duna 125 Off Road |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
124 4T E3 |
|
Power
|
12.0 HP (8.8 kW)) @ 8600 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni VM 20 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisk |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Delta box double steel beam |
|
Front suspension
|
Paioli advanced axle, 37 mm |
|
Rear suspension
|
Paioli mono shock absorber |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/80-18 |
|
Front brakes
|
Single disc. Tecme |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc. Tecme |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
105.0 kg (231.5 pounds) |
|
Weight incl. oil, gas, etc
|
114.0 kg (251.3 pounds) |
|
Power/weight ratio
|
0.1143 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2010 mm (79.1 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric & kick |
|
Factory warranty
|
24 months and unlimited mileage |
|
Comments
|
Motorhispania, also called MH Motorcycles, is a Spanish brand. |
