General moped information |
|
Model
|

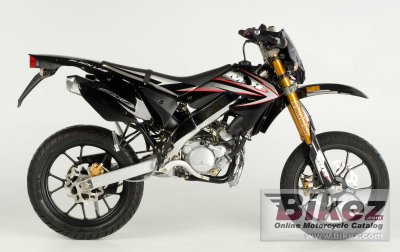

Motorhispania Black Line SM 50 |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell Ortho PHBN 12 HS |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multidisc |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Paioli hydraulic telescopic fork |
|
Rear suspension
|
Monoshock |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Double piston |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
85.0 kg (187.4 pounds) |
|
Seat height
|
931 mm (36.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1950 mm (76.8 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
6.20 litres (1.64 US gallons) |
|
Other specifications |
|
Color options
|
Black. |
|
Starter
|
Electric |
|
Comments
|
MH is a Spanish brand. Minarelli AM6 engine. |
