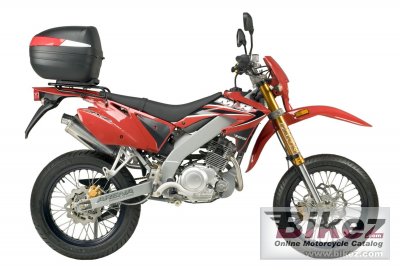

2007 Motorhispania Arena 125 Pro Racing Supermotard. Picture credits - Motorhispania.
Submit more pictures.
|
|
| General information |
|---|
| Model: | Motorhispania Arena 125 Pro Racing Supermotard |
| Year: | 2007 |
| Category: | Enduro / offroad |
| Price as new: | Euro 3461. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 125.0 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 10.0:1 |
| Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Mikuni VM 20 |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | C.D.I. |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double steel beam |
| Front suspension: | Hydraulic fork, 36 mm |
| Rear suspension: | Monoshock |
| Front tyre: | 100/80-17 |
| Rear tyre: | 130/70-17 |
| Front brakes: | Single disc |
| Diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Single disc |
| Diameter: | 200 mm (7.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 105.0 kg (231.5 pounds) |
| Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall length: | 2010 mm (79.1 inches) |
| Overall width: | 845 mm (33.3 inches) |
| Wheelbase: | 1350 mm (53.1 inches) |
| Fuel capacity: | 7.80 litres (2.06 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric |
| Comments: | Yamaha 125cc engine. Brand name often abbreviated to MH. |
