| KTM's profilation of this bike |
| Make a big impression. Plain black or black and orange, it’s all the same. With its self confident, bull-like appearance, the |
|
General information |
|
Motorcycle name
|

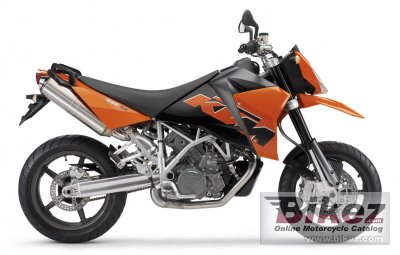

KTM 950 Supermoto Orange |
|
Model year
|
2006 |
|
Category
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
942.0 ccm (57.48 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
96.6 HP (70.5 kW)) @ 8000 RPM |
|
Torque
|
94.0 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 6500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
100.0 x 60.0 mm (3.9 x 2.4 inches) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Denso battery ignition |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Twin stainless steel with catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular space frame, chromium-molybdenum, powder-coated |
|
Rake (fork angle)
|
25.4° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-Monoshock |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
191.0 kg (421.1 pounds) |
|
Power/weight ratio
|
0.5055 HP/kg |
|
Seat height
|
865 mm (34.1 inches) If adjustable, lowest setting. |
|
Overall width
|
950 mm (37.4 inches) |
|
Ground clearance
|
190 mm (7.5 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
17.50 litres (4.62 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
