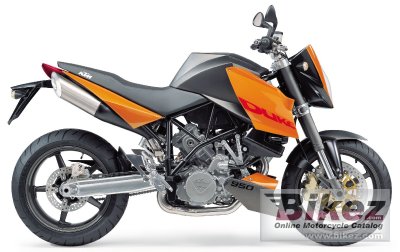

2003 KTM 950 Duke. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
KTM 950 Duke |
|
Year model
|
2003 |
|
Type
|
Prototype / concept model |
|
Rating
|
3.9 See the detailed rating of design and look, fun-factor, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
942.0 ccm (57.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
115.0 HP (83.9 kW)) @ 9500 RPM |
|
Torque
|
96.0 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 7000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
100.0 x 60.0 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
174.0 kg (383.6 pounds) |
|
Power/weight ratio
|
0.6609 HP/kg |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1435 mm (56.5 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 KTM 950 Duke discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Racing track capabilities for the 2003 KTM 950 Duke:
 (89.5 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
