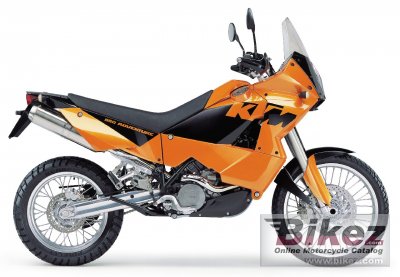

2003 KTM 950 Adventure S. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
KTM 950 Adventure S |
|
Year model
|
2003 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
942.0 ccm (57.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
98.0 HP (71.5 kW)) @ 8000 RPM |
|
Torque
|
95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
100.0 x 60.0 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP-USD 48 Multi Adjuster |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
WP - PDS with hydraulic spring preload |
|
Rear wheel travel
|
260 mm (10.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.4949 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
316 mm (12.4 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Other specifications |
