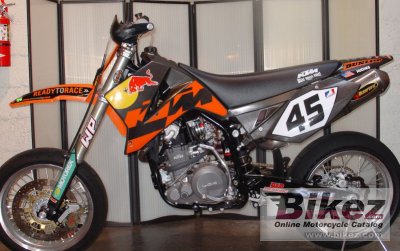

KTM 660 Supermoto Factory Replica 20032003 KTM 660 Supermoto Factory Replica specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | KTM 660 Supermoto Factory Replica |
| Year | 2003 |
| Category | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 72.0 HP (52.6 kW)) |
| Compression | 12.5:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | WP-USD 48 Multi Adjuster |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | WP - Monoshock Super Moto Spezial |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 120/60-17 |
| Rear tire | 165/55-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 114.0 kg (251.3 pounds) |
| Power/weight ratio | 0.6316 HP/kg |
| Seat height | 915 mm (36.0 inches) If adjustable, lowest setting. |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 KTM 660 Supermoto Factory Replica discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
