KTM 660 SMC 20032003 KTM 660 SMC specifications, pictures, reviews and rating |

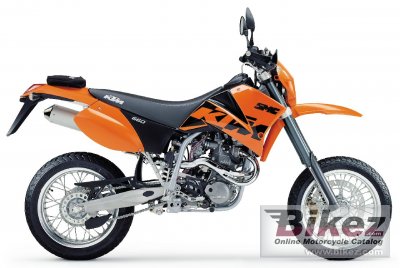

2003 KTM 660 SMC. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
| General information | |
|---|---|
| Model | KTM 660 SMC |
| Year | 2003 |
| Category | Super motard |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 32.9 HP (24.0 kW)) @ 6500 RPM |
| Torque | 43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 4000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 102.0 x 80.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | WP-USD 48 MA |
| Front wheel travel | 265 mm (10.4 inches) |
| Rear suspension | WP - Monoshock |
| Rear wheel travel | 310 mm (12.2 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 131.0 kg (288.8 pounds) |
| Power/weight ratio | 0.2510 HP/kg |
| Seat height | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 KTM 660 SMC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2003 KTM 660 SMC for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Reliability for the 2003 KTM 660 SMC:  (74.4 out of 100)Click here for complete rating. |
|
