2003 KTM 660 LC4 Rally Factory Replica

KTM 660 LC4 Rally Factory Replica 2003


2003 KTM 660 LC4 Rally Factory Replica specifications, pictures, reviews and rating

2003 KTM 660 LC4 Rally Factory Replica

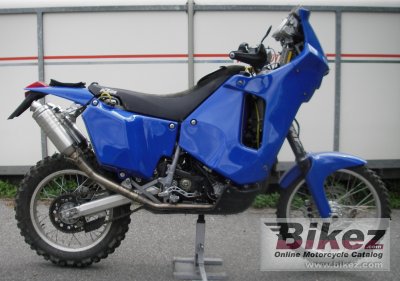

2003 KTM 660 LC4 Rally Factory Replica. Picture submitted by anonymous user.. Submit more pictures.
General information
Model KTM 660 LC4 Rally Factory Replica
Year model 2003
Type Enduro / offroad
Rating 3.6  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Engine size 654.0 ccm (39.91 cubic inches)
Type of engine Single cylinder, four-stroke
Effect 65.0 HP (47.4 kW)) @ 7500 RPM
Torque 69.5 Nm (7.1 kgf-m or 51.3 ft.lbs) @ 6000 RPM
Compression 11.5:1
Bore x stroke 102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves per cylinder 4
Fuel system Carburettor
Cooling system Liquid
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front suspension WP-USD 48 Multi Adjuster
Front wheel travel 295 mm (11.6 inches)
Rear suspension WP - Monoshock
Rear wheel travel 320 mm (12.6 inches)
Front tire 90/90-21
Rear tire 140/90-18
Front brakes Single disc
Diameter 300 mm (11.8 inches)
Rear brakes Single disc
Diameter 220 mm (8.7 inches)
Physical measures and capacities
Dry weight 162.0 kg (357.1 pounds)
Power/weight ratio 0.4012 HP/kg
Seat height 980 mm (38.6 inches) If adjustable, lowest setting.
Ground clearance 320 mm (12.6 inches)
Wheelbase 1510 mm (59.4 inches)
Fuel capacity 48.00 litres (12.68 US gallons)
Other specifications
